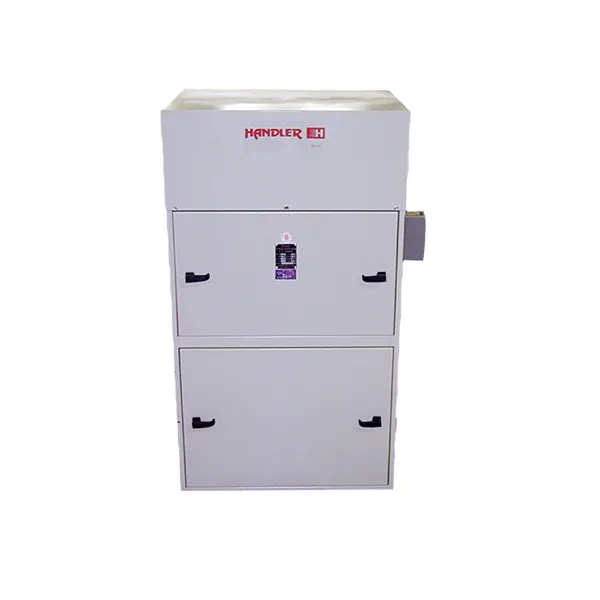

[HANDLER] 77DC Dyna-Vac Dust Collection Unit

77DC
Dyna-Vac dust collection unit designed to provide suction for 3-4 work positions, simultaneously. Powered by a 3/4 HP ball bearing, capacitor start, industrially rated brushless motor.  The model 77DC provides cost effective dust extraction with state-of-the-art drum cartridge filter technology to capture dry dust particles as small as 0.5 microns.

The powerful 3/4 HP motor and blower wheel is rated to generate 600CFM (cubic feet per minute) through the inlets provided. The unit is finished in a baked, durable coating, runs on 115V/60HZ and ships complete with switch and box type silencer.
Shipping weight: 240 lbs. [108.9 kg]
Unit dimensions: 24” W x 20” D x 38 1⁄2” H [61cm x 51cm x 98cm]
SUCTION INLETS – Four 3” (7.6cm) flanges –two mounted on each side of unit
C.F.M. – 600 C.F.M.
FILTRATION – Two drum cartridge filters provide superior filtration for most dry applications and materials
REPLACEMENT FILTERS – Order 60FC filters, quantity 2

Available with 24 cloth filter bags, model number 77

Item no.: 77DC
