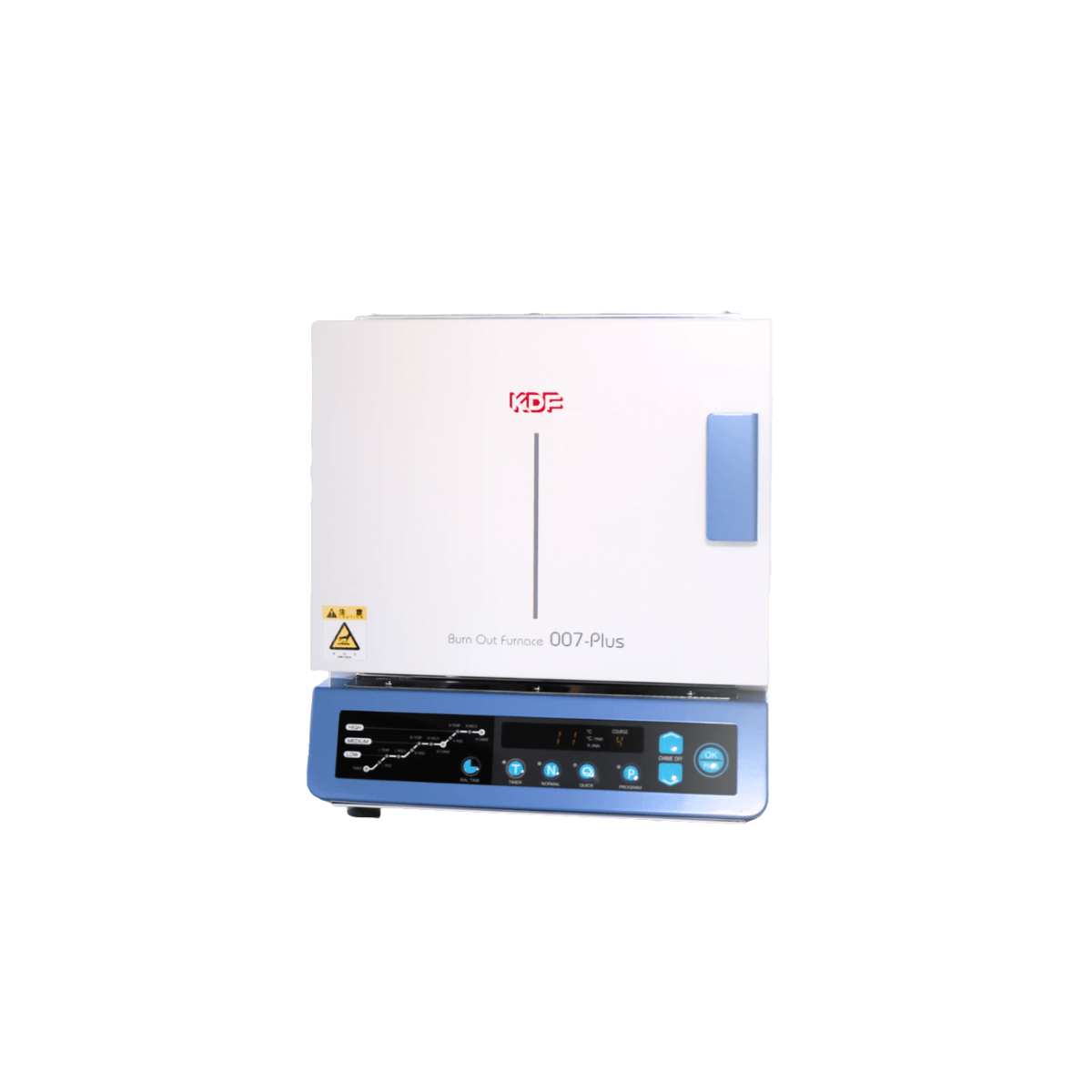

Burnout Oven 007 Plus
Takes Only 11 Minutes to 700℃ (1292℉) and 14 Minutes to 800℃ (1472℉)
Maximum Temperature 1100℃ (2012℉)
Large Capacity of Muffle Chamber with Sufficient Heat Rise
Optional Catalyst Cleaner
PRODUCT INFORMATION
Quick Heat Rise
The muffle chamber is built with newly developed insulating ceramics. 007PL takes only 11 minutes to reach 700℃ (1292℉) and 14 minutes to reach 800℃ (1472℉) because it features high quality of heat efficiency and air tightness.
3 Firing Stages
007PL allows you to obtain 3 stages of firing temperature with optimum heat rising speed and precise temperature maintenance for each specific temperature stage. Operator can program multi stage for various investments.
Simple Operation
007PL an store multi-firing program up to 10 courses for every investment need. 007PL features a quick firing button that allows you to change the normal firing program to the quick version for quick heat investment.
Specifications
Power Requirement:
120V 50/60Hz Max. 1.2kw
Vac Pump Outlet:
Single Phase 120V 0.3kVA
Pressurized Air:
0.75MPa – 1.0MPa (110psi – 146psi)
Dimension:
13 (w) x 13 (h) x 17 (d) inches
Muffle Dimension:
4.7 (w) x 4.3 (h) x 8.7 (d) inches
Weight:
40lbs (18kg)
Programs:
10
Max Temperature:
1,100°C (2,012°F)
Stages:
3 Firing Stages
Casting Ring Size:
Max. Ø90mm
Min. Ø43mm
