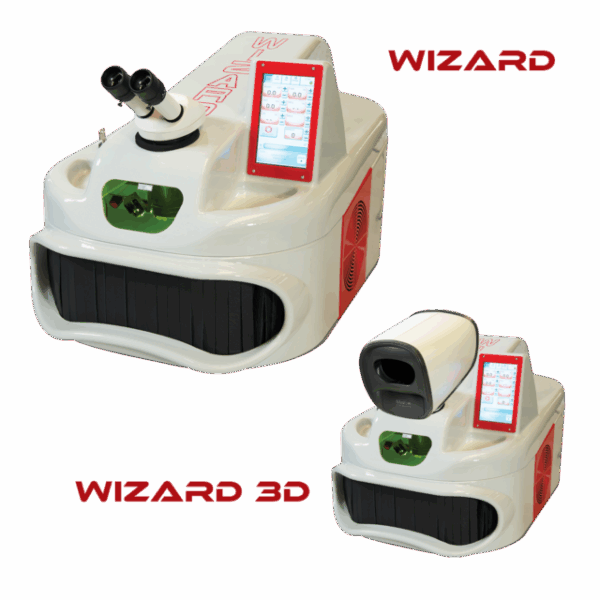

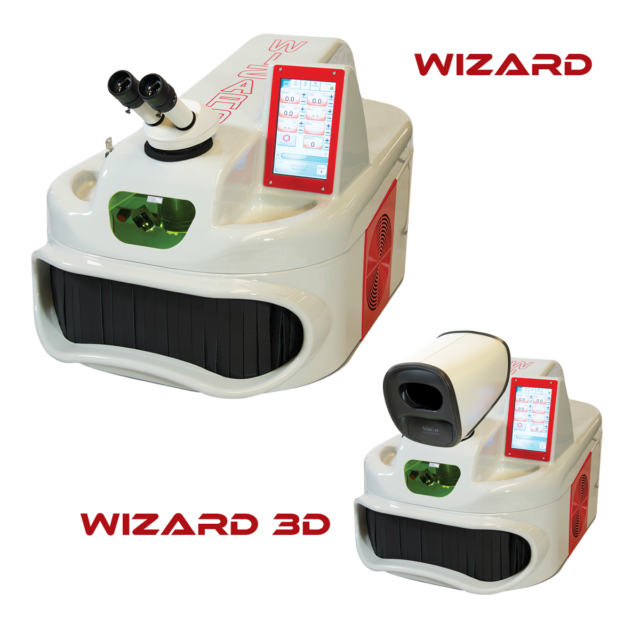

![[OMEC] WIZARD 60/80/100 Laser welder](https://apexontech.com/wp-content/uploads/2025/06/wizard-640x640-1.png)
WIZARD laser welder has born thanks to continuous technological development and searching for new solutions. It is ideal for dental, goldsmith and eyewear laboratory.
High technology and quality: WIZARD has a fully digital electronics. Welding is possible with or without wire with a controlled shot in diameter and energy. Its powerful cooling system protects electronics and allows continuous working. The laser welder is equipped with 10x Leica stero-microscope with 45° inclination, a UV fi lter and high brightness LCD
shutter. Simple and intuitive: WIZARD has a multi-language touch screen display which allows an easy setup of parameters to run the unit. It is possible to store 100 different
welding programs, suitable for all works. The laser welder is equipped with a web-cam for tele-remote servicing. Solid and compact: WIZARD weight and sizes make it the smallest laser welder of its category and its front door permits an easy access of pieces to the inside of the welding chamber. The joystick inside the welding chamber and the cold and
white light LED complete the equipment of a unit already on top of technology.
| Specification | 60J | 80J | 100J |
| Energy | 0.1 ÷ 60 J | 0.1 ÷ 80 J | 0.1 ÷ 100 J |
| Average power | 45 W | 55 W | 65 W |
| Absolute max. power | 50 W (@20ms) | 65 W (@20ms) | 75 W (@20ms) |
| Peak power | 4.5 kW | 5 kW | 6 kW |
| Impulse time | 0.1 ÷ 10 ms | 0.1 ÷ 20 ms | 0.1 ÷ 20 ms |
| Pulse frequency | 0.5 ÷ 20 Hz | 0.5 ÷ 40 Hz | 0.5 ÷ 40 Hz |
| Type laser | Nd:YAG 1064 | Nd:YAG 1064 | Nd:YAG 1064 |
| Spot diameter | 0.2 ÷ 2.2 mm | 0.2 ÷ 2.2 mm | 0.2 ÷ 2.2 mm |
| Spot setting | Motor: 30 positions | Motor: 30 positions | Motor: 30 positions |
| Wave shape | 6 | 6 | 6 |
| Programmable memories | 100 | 100 | 100 |
| External control | Touch screen, Joystick | Touch screen, Joystick | Touch screen, Joystick |
| Internal control | 300 W | 300 W | 300 W |
| Avg. absorbed power | 1,700 W | 1,700 W | 1,700 W |
| Max. absorbed power | 1,700 W | 1,700 W | 1,700 W |
| Microscope | Leica 10x | Leica 10x | Leica 10x |
| Cooling system | Air and water | Air and water | Air and water |
| Dimensions and weight | 35×63×45h cm – 40 Kg | 35×63×45h cm – 40 Kg | 35×63×45h cm – 40 Kg |
Item No.:
WIZARD 60J, 80J, 100J
