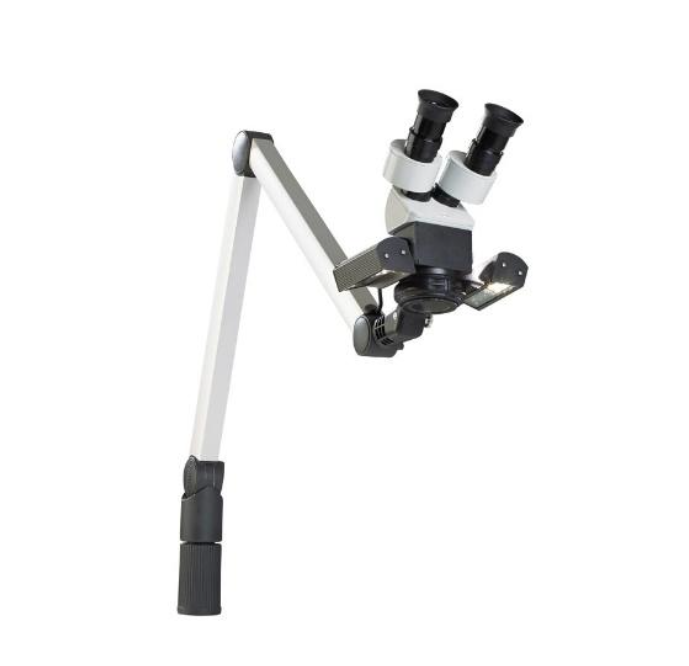

One microscope for up to 4 workplaces! The 360° swivel-mounted support arm allows a single microscope to be utilized from several workplaces for detail control and precision work.
Advantages
- 10 and 20 times magnification provides maximum precision.
- Distortion-free coupled with uniform sharpness in the entire viewing field.
- Large viewing field with a high depth of focus and marginal definition.\
Details
- Ergonomic and relaxed seating position thanks to the high working position of 150 mm.
- Dioptric compensation enables a three-dimensional view.
- Optional: LED-illumination with 9000 Lux/18 white light LEDs.
Technical Data
| Weight (incl. swivel arm) | 1.8 kg 4 lbs |
|---|---|
| Technology | analog |
| Magnification | 10x / 20x |
| Light beam (angled) | 45 ° |
| Field of vision Ø | 44 mm 1.734 “ |
| Focussing depth | 22 mm 0.867 “ |
| Action radius of swivel arm | 850 mm 33.5 “ |
| Table top thickness (with universal clamp) | 18 – 74 mm 0.71 – 2.92 “ |
| Recommended working distance from the screen | 150 mm 5.9 “ |
| Mode | 2D |
