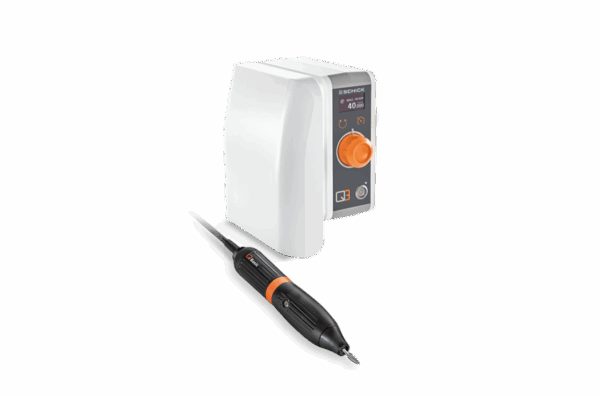

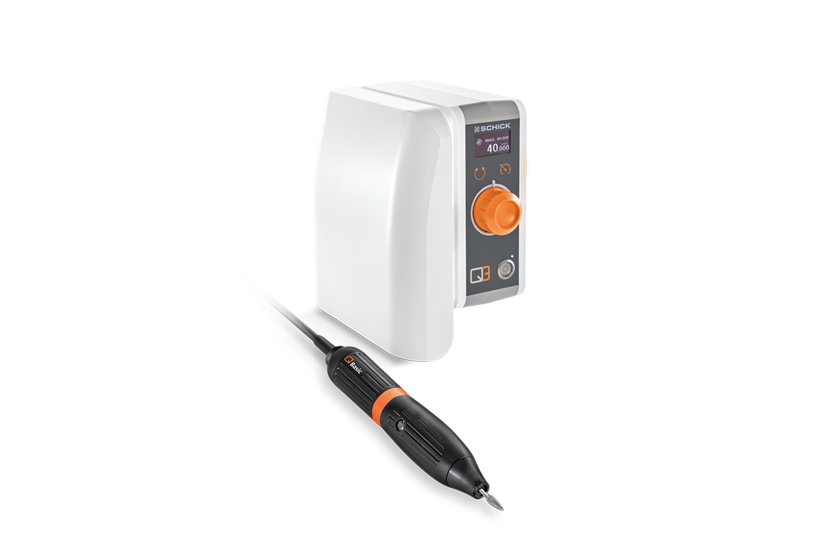

[SCHICK] Q3 Basic complete
Q3 Basic Control Unit
Speed: 200 – 40,000 rpm
Torque: 7 Ncm
Power consumption: 100 W
Operating voltage: 100 – 240 V, 50/60 Hz
Dimensions: 10.5 × 21.0 × 20.0 cm
Overload protection: no waiting time when restarting
Q Basic Handpiece (9400/3)
Diameter: max. 30 mm
Length: 158 mm
Weight: 240 g without cable / 370 g with cable
Concentricity: < 0.02 mm
Cooling: closed system, no cooling required
Drive: brushless DC motor
Chucks: Ø 2.35 mm standard, Ø 3.00 mm optional
Tool change: quick release
Slim handpiece (9400/13) available — pen and fist grip, suited to smaller hands.
Table top models do not include a foot pedal. Dynamic Foot Pedal (9440) sold separately.
Scope of delivery: control unit, handpiece with cable, handpiece holder, 2 tools, mains cable.
Powerful
The new Q3 series from Schick offers unbeatably high performance parameters with up to 60,000 rpm and 11 Ncm torque. Thanks to new technology, the speed can be regulated extremely sensitively and is therefore ideally suited for processing even the most demanding dental materials.…
- Versatile and reliable: All important parameters are clearly displayed on the bright OLED display and can be easily read from all angles. Additional functions such as forward / reverse and cruise control leave nothing to be desired and can be easily activated using direct selection buttons.
- Well balanced: The ultra-light and ergonomically perfectly balanced motor handpiece, already known from the QUBE II, prevents symptoms of fatigue in the wrist and provides the user with maximum support in their daily work in the laboratory.
Everything in view
The perfectly readable OLED display shows all the important operating parameters and provides information about the current and preset maximum speeds at all times.
Premium in quality and smoothness
The Q Premium handpiece sets new standards. Thanks to the modern two-bearing design, optimal running smoothness is achieved and heating under load is reduced to a minimum.
Unique solution for more performance
With the newly developed Powerstick from Schick, the two performance classes Q3 Basic and Q3 Profi can be retrofitted with additional performance if required.
Item No.:
10765 Q3 Basic knee control complete
10768 Q3 Basic foot control complete
10773 Q3 Basic table-top control complete – without foot pedal
| Weight | 7 kg |
|---|---|
| Dimensions | 20 × 20 × 20 cm |
| Type | Knee control, Foot contrl, Table top(without foot pedal), Table top – Slim handpiece |
