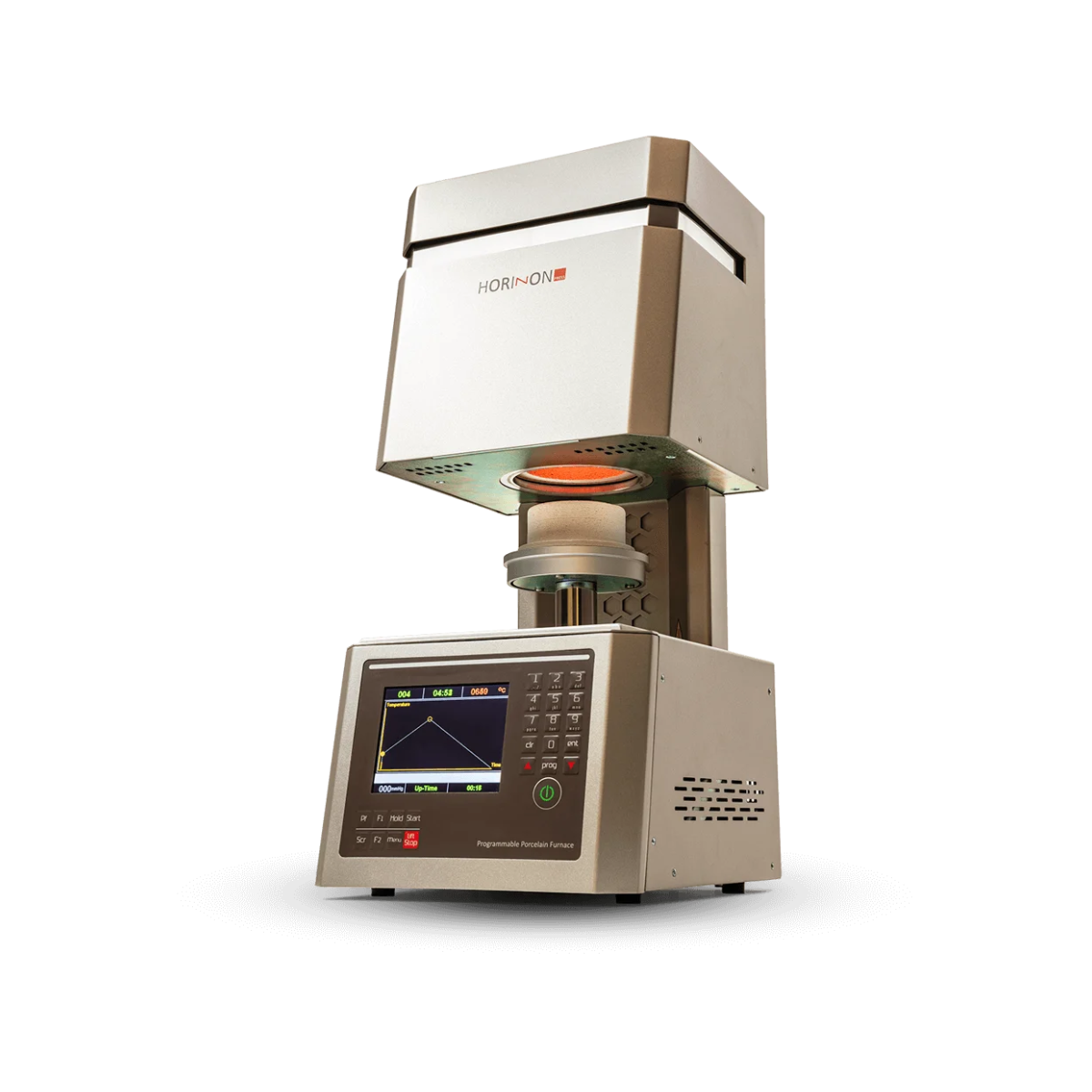

[SHENPAZ] Horizon Press

Time Saving

FULL CUSTOMIZATION of cooling rate and hold time; pre-programmed tempering process adjusts for cooling rates of zirconia, metal and porcelain materials

Energy Efficient

ENERGY SAVING features:

• Firing chamber lined with superior insulation
• Chamber entrance tightly sealed to hold temp. ready for next cycle
• Single phase electrical supply for low wattage consumption.

Intuitive full color digital display

• 200 firing and 50 pressing programs
• USB port for fast transfer of program data
• Acoustic signals that alert to furnace status
• Special e-base cylinder base adapted to IPS e-max® products
• Horizon standard firing furnace available with 200 programs

Technical date

Max. Temperature: 1200 °C

Max. Firing temperature: 1180 °C

Temperature ramp *:  1 to 120 °C

Programs: 250

Acoustic signal:  √

Weight (kg): 26 kg

Width x height x depth (cm): 28x63x30

USB port: √

Cylindrical combustion chamber: Ø95 mm x 65 mm

Power supply:

• 115 V 50/60Hz, 15 Amp
• 230 V 50/60Hz, 8 Amp
• 3 years warranty

Specifications

Dimensions: 30x28x63cm (12”x11”x25”) (WxHxD)

Weight: 20 KG (44 lb)

Display screen: 5.7”

Firing chamber: Ø 95mm x 65mm/h (Ø 3.7”x2.6”mm/h)

Firing table: Ø 90mm (Ø 3.5“)

Temperature range: from 100°C to 1180°C (212°F to 2156°F)

Heat rate: 10-120°C (50-248° F)/min

Horizon Press
Pressing: 4.2 bars
Pressure: 4.2 Bar Weight: 25.5 KG (56 lb)

Material: Durable Kanthal* spiral material
