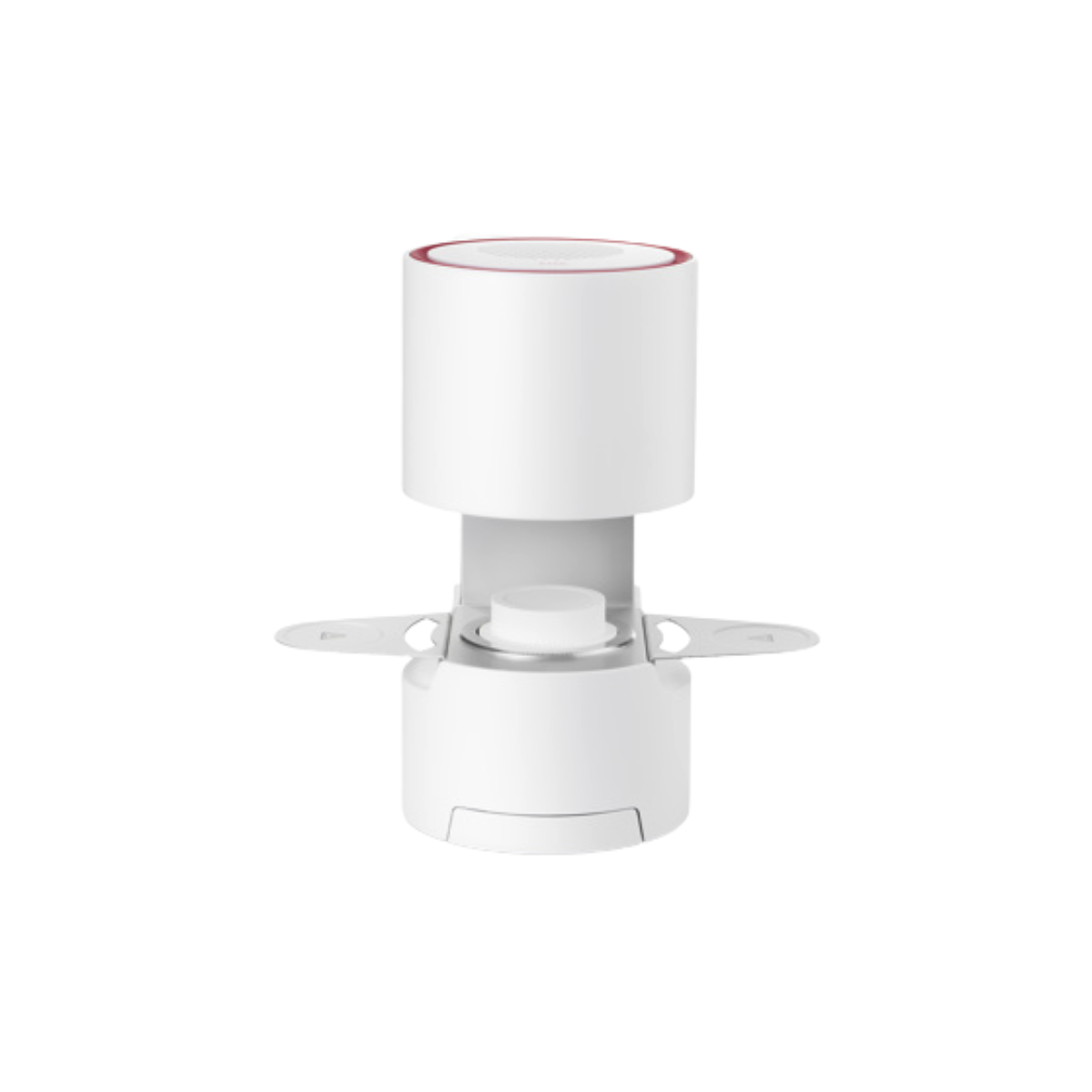

![[VITA] VITA SMART.FIRE ADVANCED](https://apexontech.com/wp-content/uploads/2026/04/BD3-59.png)
The VITA SMART.FIRE ADVANCED combines modern design with reliable firing quality. Despite its compact design, it even offers ample space for up to 14-unit bridges – making it ideal not only for your practice, but also for all laboratories. Experience the intuitive, user-friendly operation with everything important at your fingertips, thanks to the convenient accessory drawer.
Attractive
Modern design and intuitive operation.
Compact
Space-saving design with large firing chamber.
Efficient
Safe firing process, thanks to controlled linear cooling.
With firing temperatures of up to 1,200 °C, the VITA SMART.FIRE ADVANCED is suitable for
- the firing of ceramic, stain and corrections
- Glaze firing
- crystallization firings with and without vacuum
Thanks to the pre-programmed firing programs, which are optimally adapted to all common ceramic materials, it not only offers efficient processing, but also esthetically pleasing results.
Technical functions
- Service and monitoring programs, e.g. automatic temperature adjustment before every start of the program, temperature and vacuum control, counter for operating hours of firing muffles
- Controlled linear cooling with freely selectable cooling gradients
- Power failure protection
- Adjustable vacuum values, adjustable pre vacuum and main vacuum
- Lift monitor, adjustable lift speed
- Freely adjustable lift positions for pre-drying and slow cooling
| Technical data | |
|---|---|
| Width | 230 mm |
| Depth | 310 mm |
| Height | 330 mm |
| Weight | 12,4 kg |
| Casing | Polyurethan |
| Chamber diameter | 80 mm |
| Chamber height | 43 mm |
| Firing temperature | 1200°C |
| Power supply | 100/110V 50/60Hz 230V 50/60Hz |
| Power consumption | 950 W (230 V), max. 1100 W (100 V, 110 V) |
| Classification | Protection class 1 |
VITA SMART.FIRE ADVANCED Accessories
4 x Ceramic pins
2 x Four-finger pins
1 x Firing pad round (Ø 44 mm)
1 x firing trays
1 x firing pliers
2 x cooling trays
Accessories (can be purchased separately):
- VITA vPad LITE / VITA vPad PRO
- for the simultaneous operatoin with one control unit VITA vPad (as from the 2nd furnace), 1 switchbox (Art. no. D65000) is required. The switchbox is suitable for the simultaneous operation of up to 4 firing units.
- Vacuum pump or Vacuum pump II
