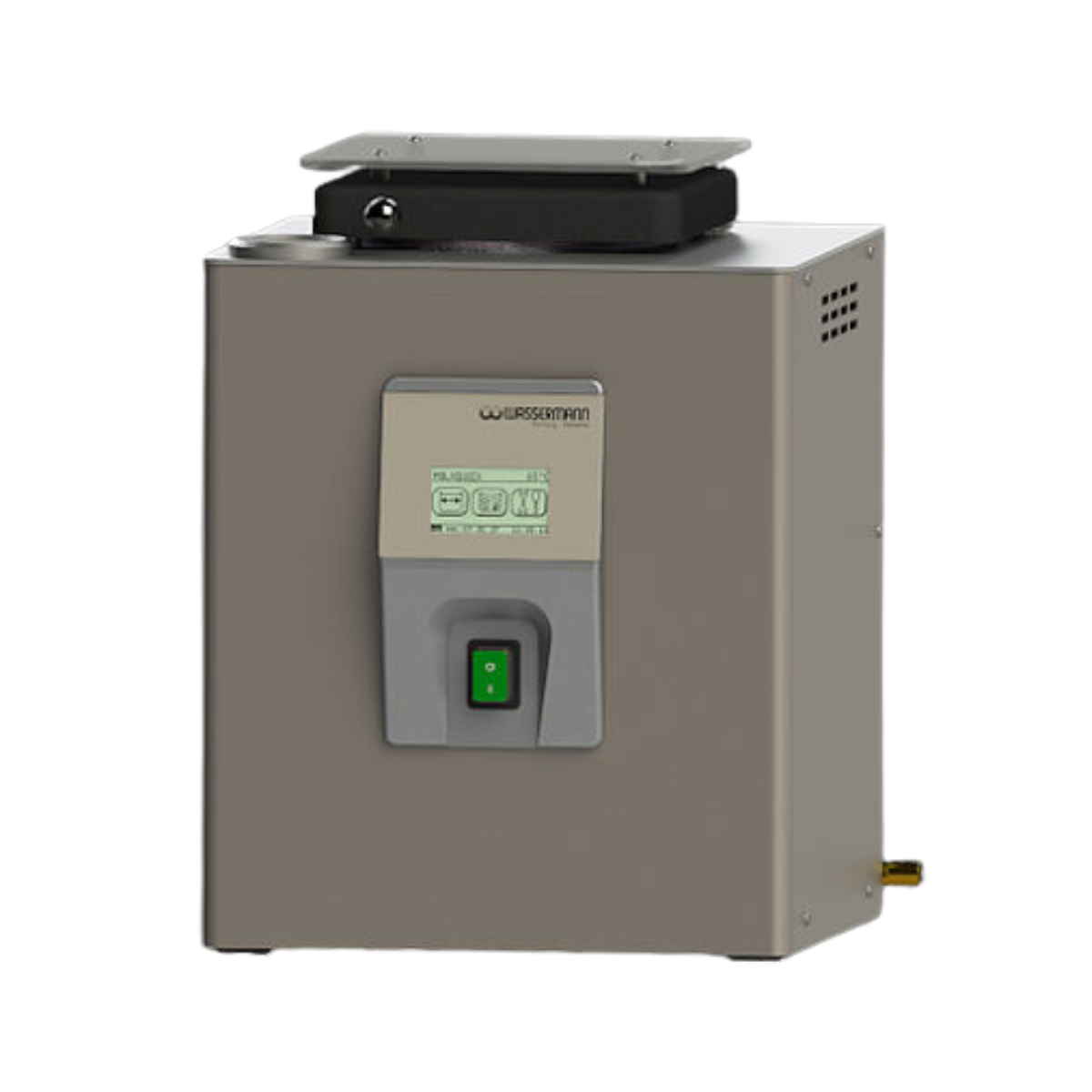

Polyquick 160-T95 is a compact table-top unit for pressure polymerisation up to 95°C in a water bath and it can also be operated as a pressure compactor without heating or for dry pressure compression up to approx. 70°C.

Range of application:

The Polyquick 160-T95 is a pressure polymerisation unit for hot and cold polymerisation of plastics. This automat is designed for polymerisation of up to 3 flasks in flask holder or 2 cast resin flasks or rebasing frames or 6 orthodontic regulatings at one time. It can be set to a maximum temperature of 95 °C and the polymerisation pressure can be adjusted to a maximum of 6 bar. In automatic mode, the polymerisation time can be preselected up to 99 hours. A touch screen and the newly developed control panel allow the user to set the relevant parameters quickly and easily using self-explanatory symbols.
The Polyquick 160-T95 can also be used as a pressure compactor without heating or for dry pressure compression up to approx. 70°C.

Major features at a glance:

• Compact table-top unit for pressure polymerisation up to 95 °C in a water bath

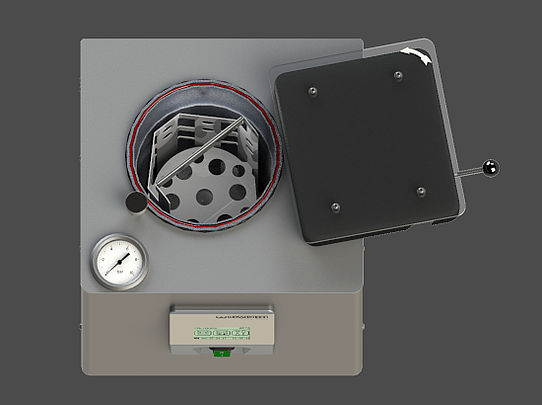

• Large capacity Ø 150 mm, depth 285 mm
• Touch screen for fast and easy operation
• 13 programmes, each with three individually configurable polymerisation stages
• The unit can also be operated as a pressure compactor
• Optional feature: Dry pressure compression up to approx. 70°C
• Rapid draining: prompt switch between the two modes
• Separate menu for each mode
• Intelligent workflow preset by the software helps the user to ensure operational safety
• Remaining time displayed to the second
• Powerful, electronically controlled heating for optimal working temperature
• Pressure relief valve for protection in case of malfunction (7 bar)
• Safety lid with bayonet lock
• Dry-run protection
• Engraving in container indicating max. water level
• Time and cost saving due to thermal insulation
• Made almost entirely of stainless steel
• Low maintenance, easy to service

Included in delivery:

• Flask bracket support
• Flask basket
• Compressed air hose, 2 m
• Discharge hose, 2 m
• Hose clip Ø 12-20 x 9

Technical Specifications
