[WASSERMANN] Combination Automat Polyquick 260-T105

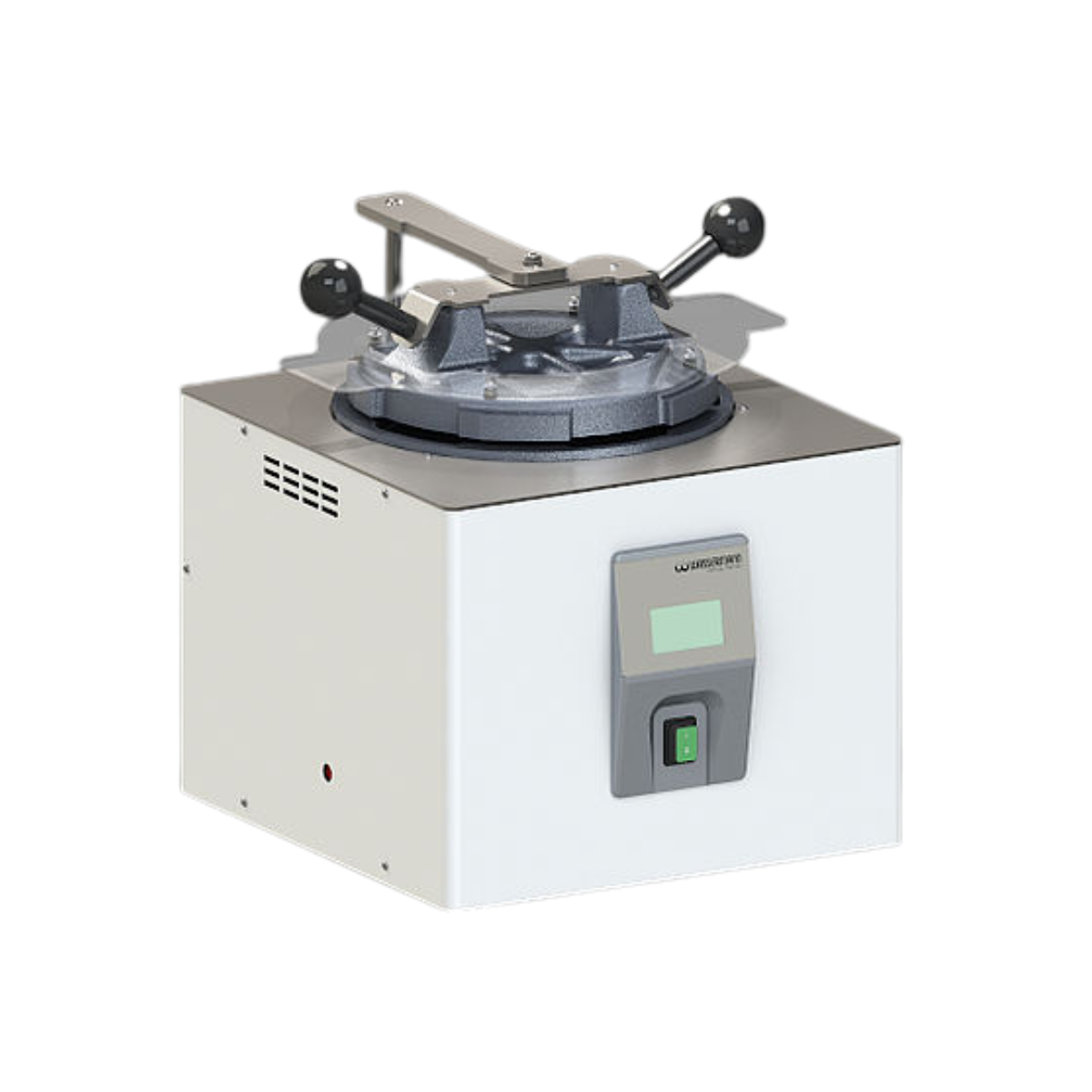

Polyquick 260-T105 is a compact table-top unit for pressure polymerisation up to 105°C in a water bath and it can also be operated as a pressure compactor. It has a particularly large pressure pot volume and can hence also accommodate extra large articulators or up to 6 brass flasks including clamp.

Range of application:

Polyquick 260-T105 is a pressure polymerisation unit for hot and cold polymerisation of plastics. It can be set to a maximum temperature of 105°C and the polymerisation pressure can be adjusted to a maximum of 4 bar. In automatic mode, the polymerisation time can be preselected up to 99 hours. A touch screen and the newly developed control panel allow the user to set the relevant parameters quickly and easily using self-explanatory symbols. The Polyquick 260 can also be used as a pressure compactor without heating.

Major features at a glance:

• Compact table-top unit for pressure polymerisation up to 105°C in a water bath
• Three continuously adjustable polymerisation stages
• Touch screen for fast and easy operation
• The device can also be operated as a pressure compactor
• Rapid draining: Prompt switch between the two modes
• Separate menu for each mode
• Intelligent workflow preset by the software helps the user to ensure operational safety
• Remaining time displayed to the second
• Powerful, electronically controlled heating for optimal water temperature

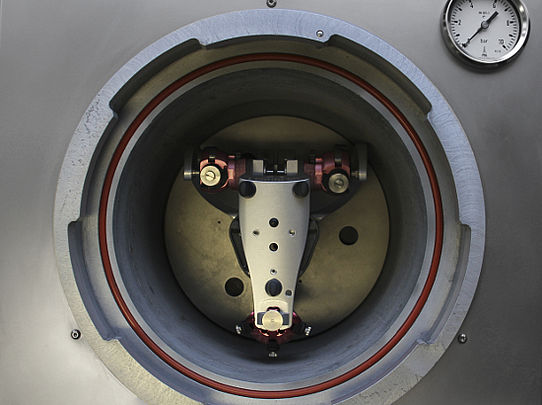

• Very large capacity Ø 240 mm, usable depth 160 mm, suitable for extra large articulators
• Pressure relief valve for protection in case of malfunction (7 bar)
• Safety lid with bayonet lock
• Engraving in container indicating max. water level
• Dry-run protection
• Time and cost saving due to thermal insulation
• Low maintenance, easy to service
• Made almost entirely of stainless steel

Included in delivery:

• Flask bracket support
• Compressed air hose, 2 m
• Discharge hose, 2 m
• Hose clip Ø 12-20 x 9

Technical Specifications
