[WASSERMANN] Sidomix III

A head for the right mixture
Perfect mixture at the press of a button: With the Sidomix III, mixing and dosing of low-viscous, addition cross-linking duplicating silicones is now child’s’ play.

Range of application:

With the simple press of a button the desired components are mixed 1:1 and dosed correctly– fully automatically, totally homogenous and fully bubble free. The innovative mixing head is the secret: Its spatially separated outlet openings prevent the components from mixing – even when attaching and removing the mixing cannulas. Practical in its application: The containers for the A and B components can be attached very simply to the unit with the quick-couplings.

Major features at a glance:

• Automatic mixing and dosing unit for low-viscous, addition cross-linking duplicating silicones
• Components are mixed and dosed 1:1 at the push of a button, homogenously and bubble free
• Material and time saving with loss free filling of several cells with one mixing cannula

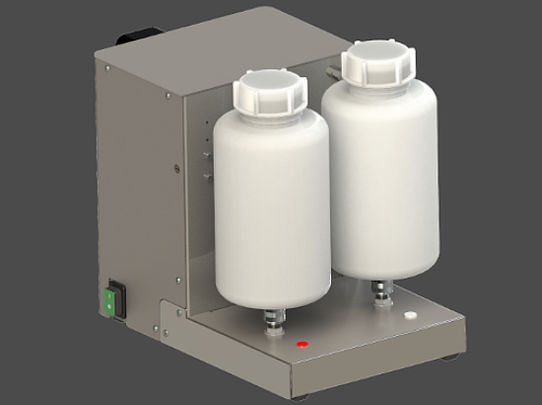

• Practical adapter with quick coupling for simple attachment of 1 kg and 6 kg casks, support frame available for 6 and 25 kg casks
• Mixing head with separate outlet openings – makes mixing of components impossible
• High-quality manufacture

Tip: specially recommended for use of WaSil-duplicating silicones

• WaSil soft, Hardness Shore A: 16-18
• WaSil speed, Hardness Shore A: > 24
• available as: 1 kg, 6 kg, 25 kg per component A / B

Included in delivery:

• Set material cask incl. quick fitting coupling, 2 x 2 liter
• Mixing canulas, pink, 10 pcs.

Technical Specifications
